LTC3603IMSE#TRPBF ShenZhen Positive Adjustable Buck Switching Regulator IC 0.6V 1 Output 2.5A 16-TFSOP

Name: LTC3603IMSETRPBF ShenZhen Positive Adjustable Buck Switching Regulator IC 06V 1 Output 25A 16TFSOP
Brand: Analog Devices Inc.
Price: 2.5 USD

LTC3603IMSE#TRPBF ShenZhen Positive Adjustable Buck Switching Regulator IC 0.6V 1 Output 2.5A 16-TFSOP Manufactures

Brand Name : Analog Devices Inc.

Model Number : LTC3603IMSE#TRPBF

Certification : ISO9001

Place of Origin : China,GuangDong

MOQ : >=20pcs

Price : $2.5

Payment Terms : Escrow, L/C, D/A, D/P, T/T

Supply Ability : 20000 Acre/Acres per Day+pcs+2-3days

Delivery Time : 1-5work days

Packaging Details : Tape & Reel (TR) Cut Tape (CT) Digi-Reel

Description : IC REG BUCK ADJ 2.5A 16MSOP

Package / Case : 16-TFSOP

Mounting Type : Surface Mount

Operating Temperature : -40°C ~ 125°C (TJ)

Voltage - Supply : 0.6V ~ 14.5V

Type : Adjustable

Product Status : Active

Base Product Number : LTC3603

Contact Now

LTC3603IMSE#TRPBF ShenZhen Positive Adjustable Buck Switching Regulator IC 0.6V 1 Output 2.5A 16-TFSOP

PRODUCT DESCRIPTION

The LTC®3603 is a high efficiency, monolithic synchronous step-down DC/DC converter utilizing a constant-frequency, current mode architecture. It operates from an input voltage range of 4.5V to 15V and provides an adjustable regulated output voltage from 0.6V to 14.5V while delivering up to 2.5A of output current.

The internal synchronous power switch with 45mΩ on-resistance increases efficiency and eliminates the need for an external Schottky diode. The switching frequency can either be set by an external resistor or synchronized to an external clock. OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of loads and output capacitors. The LTC3603 can be configured for either Burst Mode operation or forced continuous operation.

Forced continuous operation reduces noise and RF interference, while Burst Mode operation provides the highest efficiency at light loads. In Burst Mode operation, external control of the burst clamp level allows the output voltage ripple to be adjusted according to the requirements of the application.

PRODUCT PROPERTIES

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	15V
Voltage - Output (Min/Fixed)	0.6V
Voltage - Output (Max)	14.5V
Current - Output	2.5A
Frequency - Switching	1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-TFSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	16-MSOP-EP
Base Product Number	LTC3603

LTC3603IMSE#TRPBF ShenZhen Positive Adjustable Buck Switching Regulator IC 0.6V 1 Output 2.5A 16-TFSOP

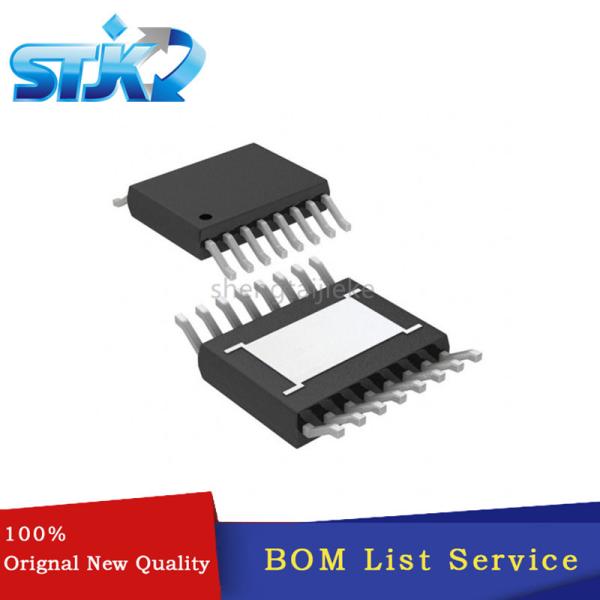

LTC3603IMSE#TRPBF ShenZhen Positive Adjustable Buck Switching Regulator IC 0.6V 1 Output 2.5A 16-TFSOP Images
